Descripción

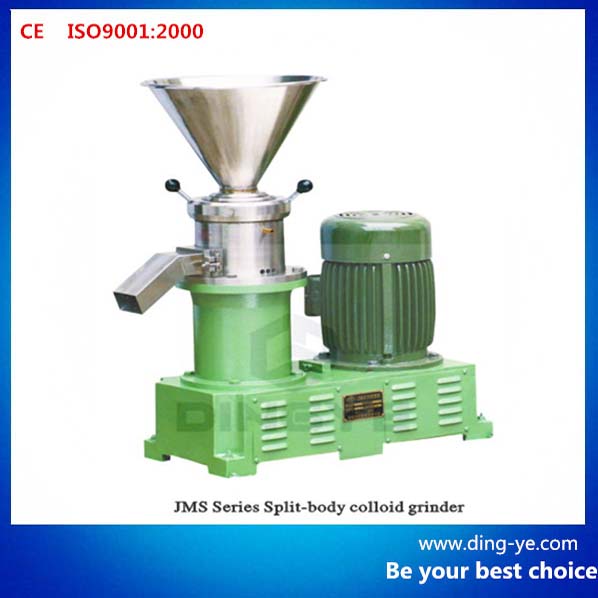

The working principle of the colloidal mill is that: Under the effect of centrifugal force and being run by relatively high speed between the rotating gear and
the fixed gear, the liquid and the semi liquid materials is efficiently emulsified, homogenized, dispersed and mixed during the course of being cut, milled
and shocked with high frequency. After that you can get the satisfied and processed material. The colloidal mill is widely applied in sorts of products of
many fields by its advantage such as foodstuffs industry, medicine industry, chemical industry and every day chemical industry etc; the products including
soybean milk, fruit jam, peanut butter, artificial corn milk, cream, perfumery compound, pigment, greasing oil, dyestuff, pant, fish live oil, pollen honey,
tooth paste and so on.
When processing high consistency material, such as peanut and sesame etc, you should fix the helix drive ram that is produced by our company to the
top side of the rotor.
Specification
|
Model |
JMS-80 |
JMS-120 |
JMS-130 |
|
Voltage |
3 Phase 220/380V 50-60HZ |
||
|
Power |
4KW |
7.5KW |
11KW |
|
Granule precision |
2-50μm |
2-50μm |
2-40μm |
|
Output |
0.2-1.5T/hour |
0.5-2T/hour |
0.5-4T/hour |
|
Weight |
150kgs |
250kgs |
330kgs |
|
Machine size |
650*300*800mm |
750*380*800mm |
800*400*1000mm |
TIEMPO DE ENTREGA: INMEDIATO
FORMA DE PAGO: DEPÓSITO BANCARIO, TARJETA DE CREDITO, 6 MESES SIN INTERESES CON TARJETA BANAMEX O AMERICAN EXPRESS.
PRECIO NO INCLUYE FLETE
